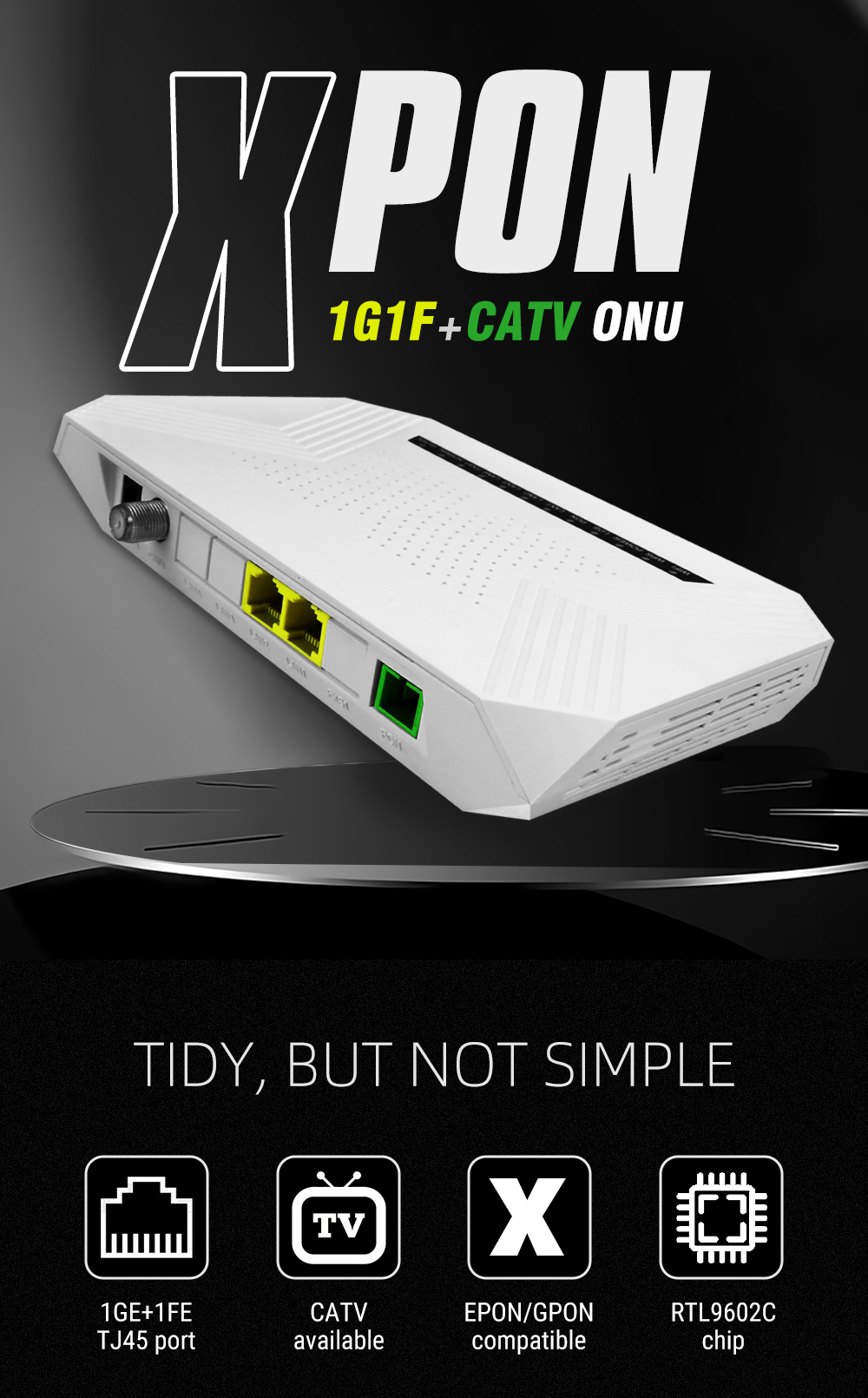

● HUR2104X is designed as HGU (Home Gate- way Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
● HUR2104X is based on mature and stable, cost-effective XPON technology.
● HUR2104X adopts high reliability, easy man- agement, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

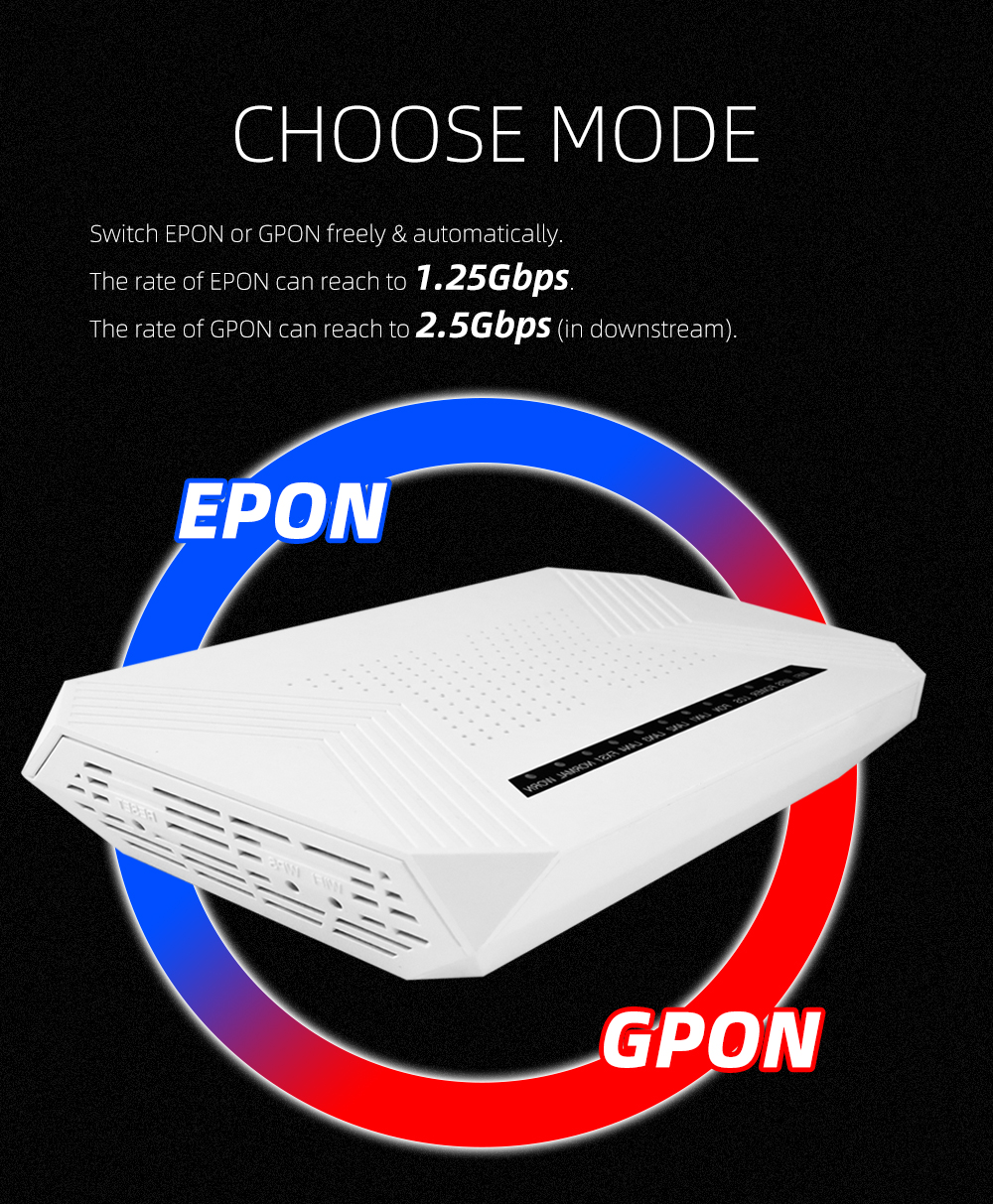

● Support EPON/GPON mode and switch mode automatically
● Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
● Support IPv4 and IPv6 Dual mode
● Support SIP Protocol for VoIP Service
● Support CATV interface for Video Service and remote control by Major OLT

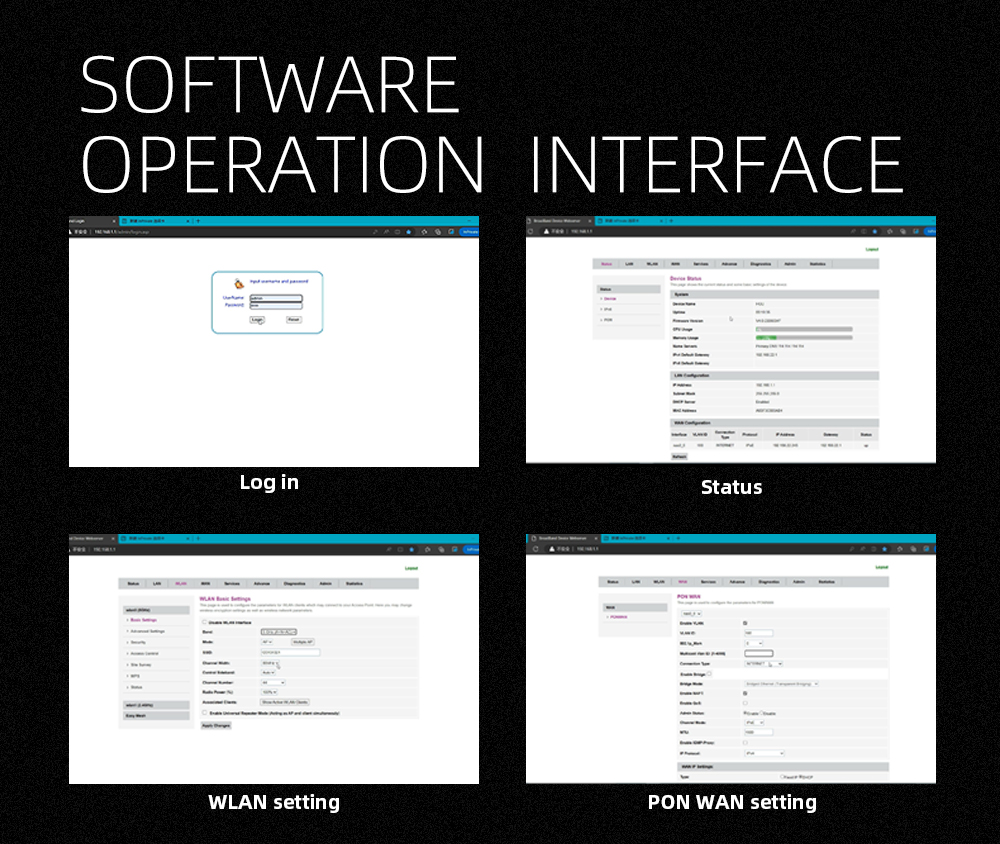

● Support LAN IP and DHCP Server configuration
● Support Port Mapping and Loop-Detect
● Support Firewall function and ACL function
● Support IGMP Snooping/Proxy multicast feature
● Support TR069 remote configuration and mainte-nance

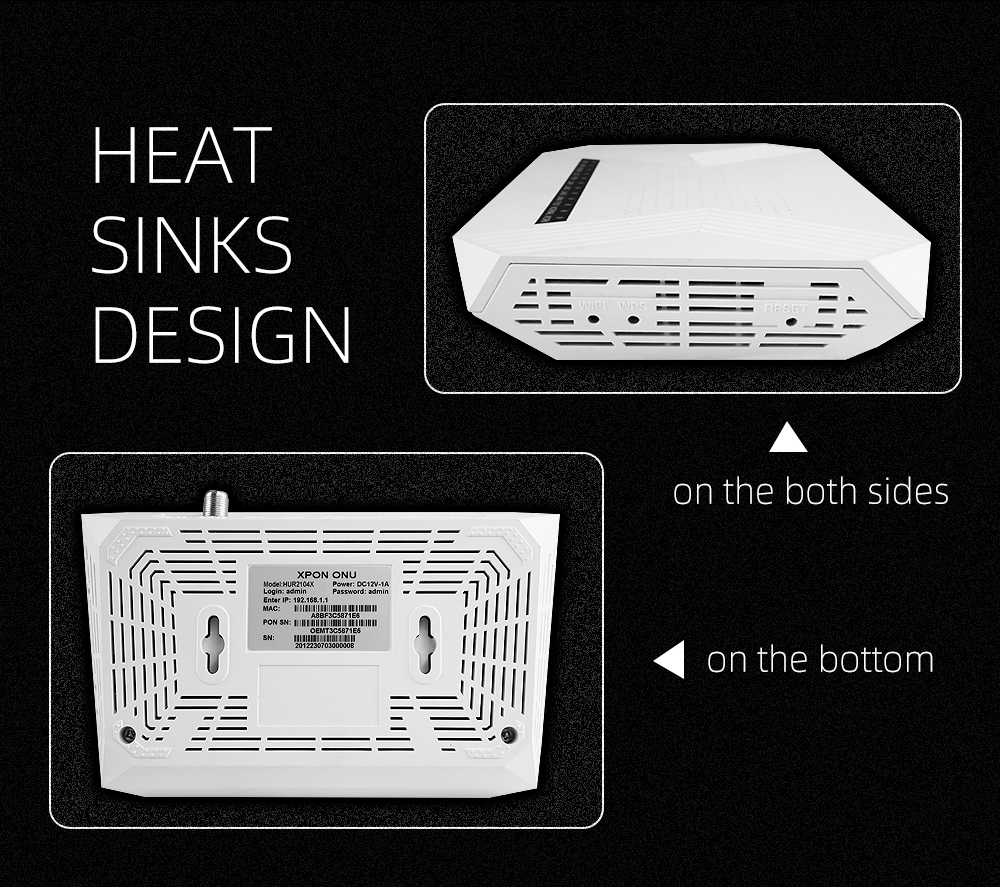

● Specialized design for system breakdown preven- tion to maintain stable system

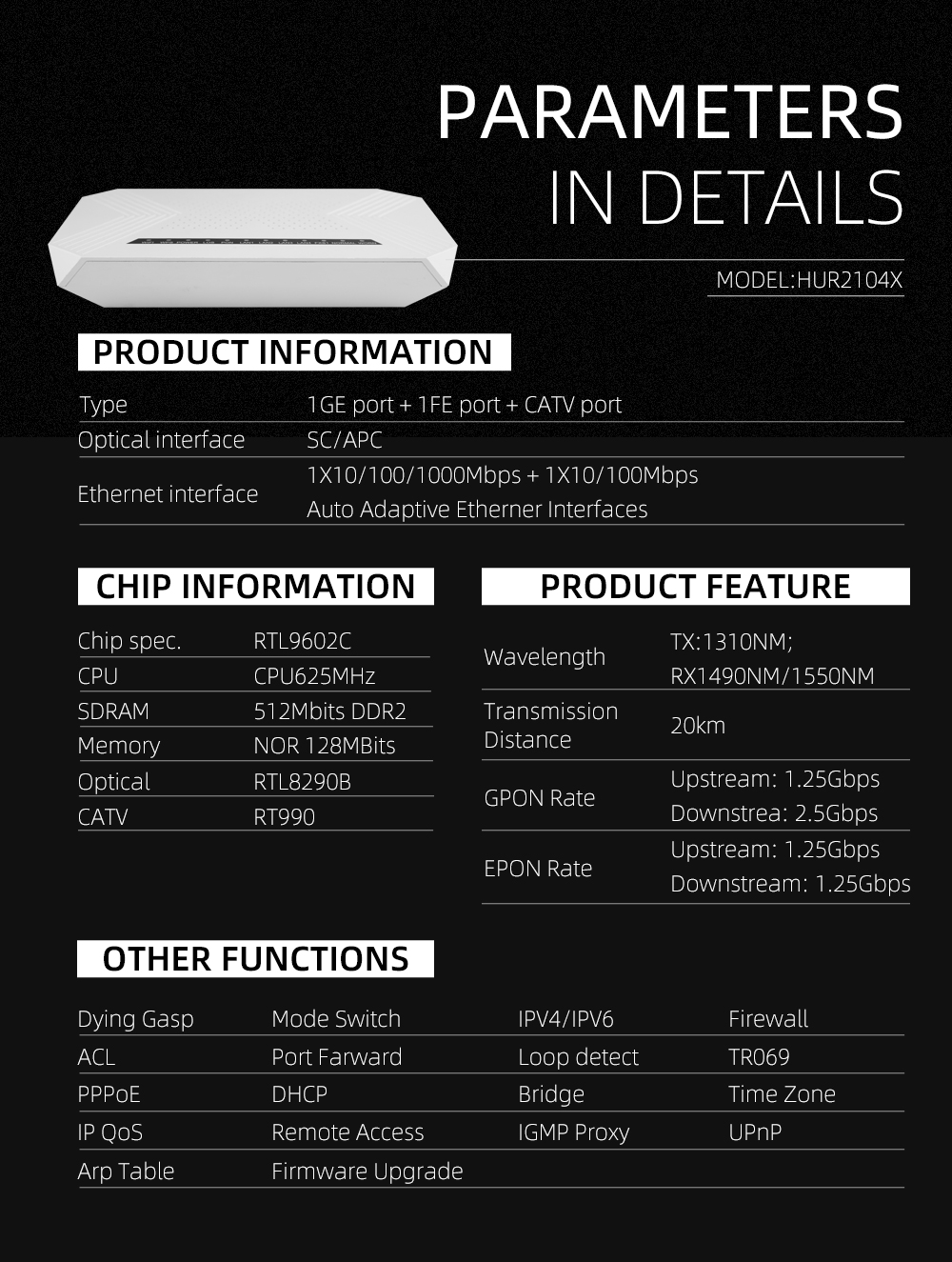

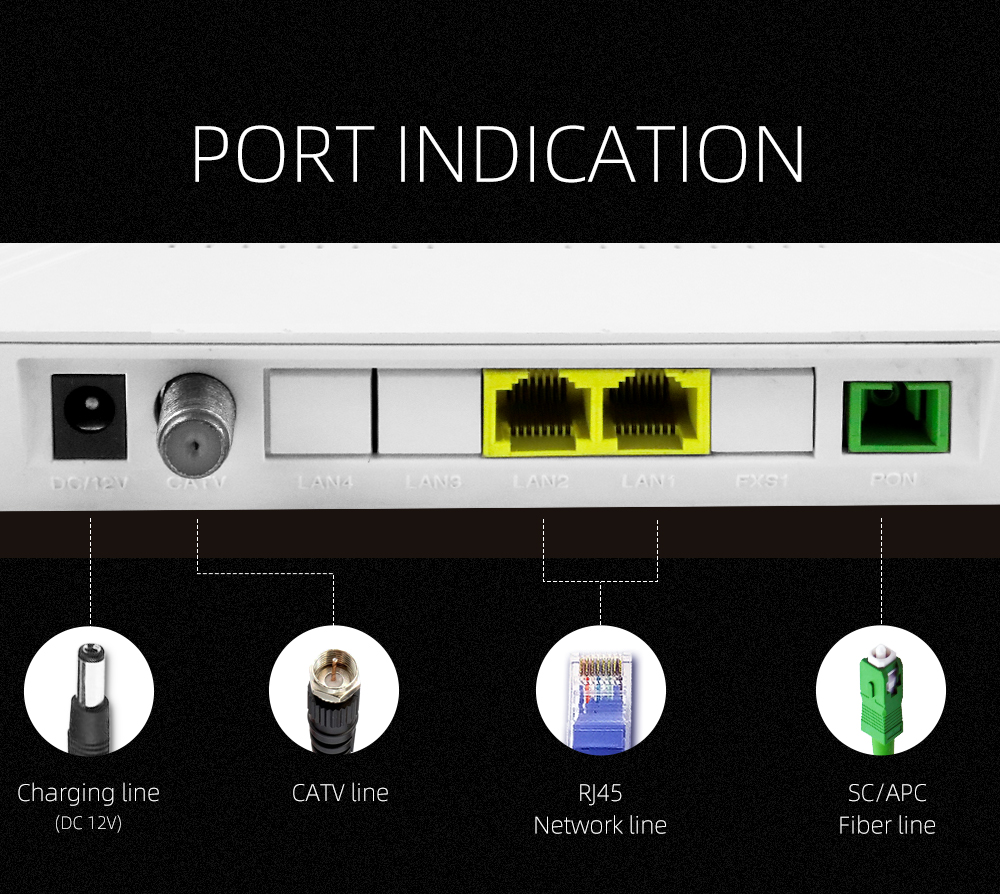

HARDWARE SPECIFICATION
| Technical item | Details |
| PON Interface | 1 GPON BOB （Bosa on Board）Receiving sensitivity: ≤-27dBmTransmitting optical power: 0~+5dBmTransmission distance: 20KM |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/APC Connector |
| Chip Spec | RTL9602C,DDR2 64MB |
| Flash | SPI Nor Flash 16MB |
| LAN Interface | 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptiveEthernet interfaces. Full/Half, RJ45 connector |
| CATV Interface | RF, WDM, optical power : +2~-15dBmOptical reflection loss: ≥45dBOptical receiving wavelength: 1550±10nmRF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV AGC range: -13~+1dBm MER: ≥32dB@-15dBm |
| LED | 7LED, For Status of PWR, LOS, PON, LAN1~LAN2, Worn, Normal(CATV) |
| Push-Button | 1, For Function of Factory Reset |
| Operating Condition | Temperature: 0℃~+50℃Humidity: 10%~90%(non-condensing) |
| Storing Condition | Temperature: -30℃~+60℃Humidity: 10%~90%(non-condensing) |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 180mm×107mm×28mm（L×W×H） |
| Net Weight | 0.2Kg |

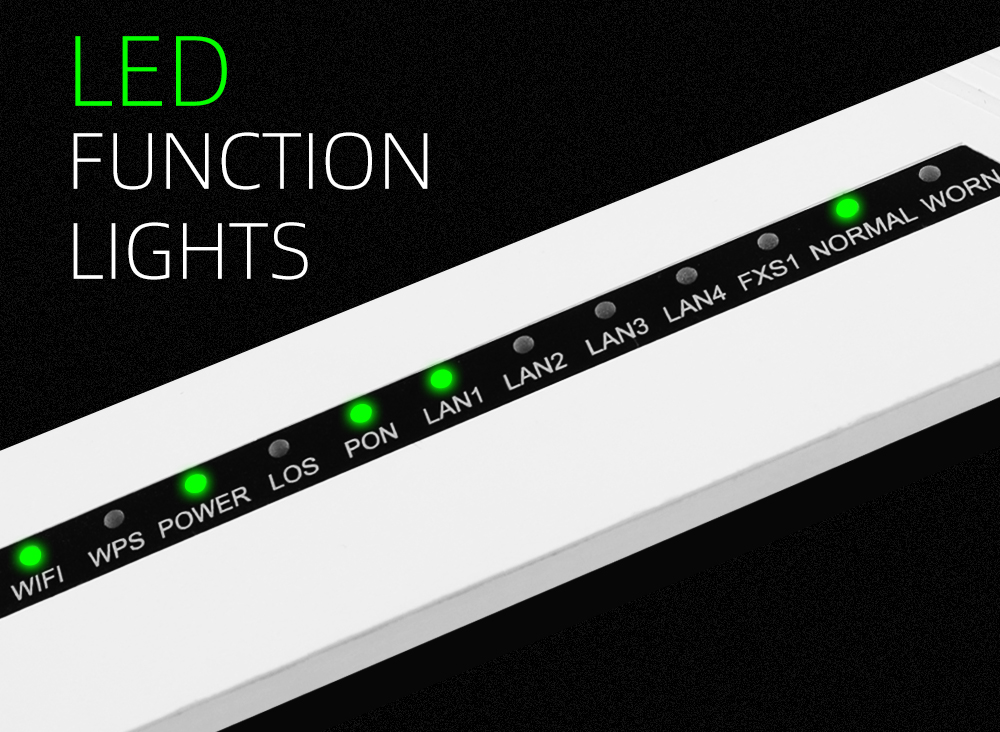

PANEL LIGHTS INTRODUCTION
| Pilot Lamp | Status | Description |
| PWR | On | The device is powered up |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect | |
| LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT) | |
| Off | Port (LANx) connection exception or not connected | |
| WORN(CATV) | On | nput optical power is higher than 3dbm or lower than -15dbm. |
| Off | Input optical power is between -15dbm and 3dbm. | |
| Normal(CATV) | On | Input optical power is between -15dbm and 3dbm. |
| Off | Input optical power is higher than 3dbm or lower than -15dbm. |

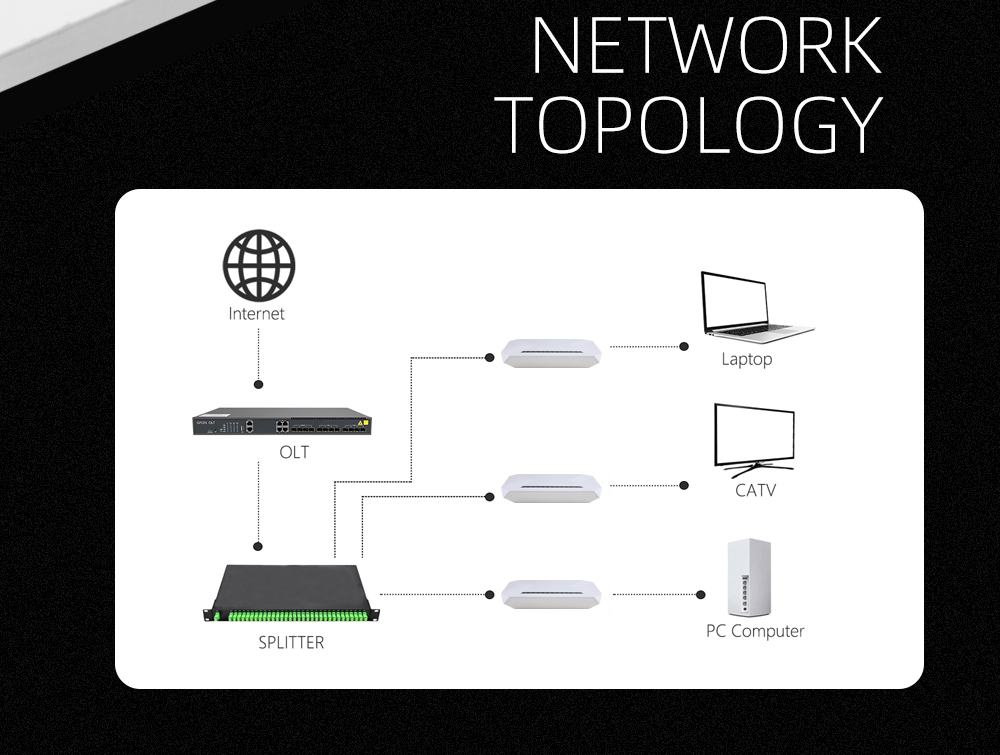

APPLICATION
● Typical Solution：FTTH(Fiber To The Home)
● Typical Business：INTERNET, IPTV, CATV, etc.
